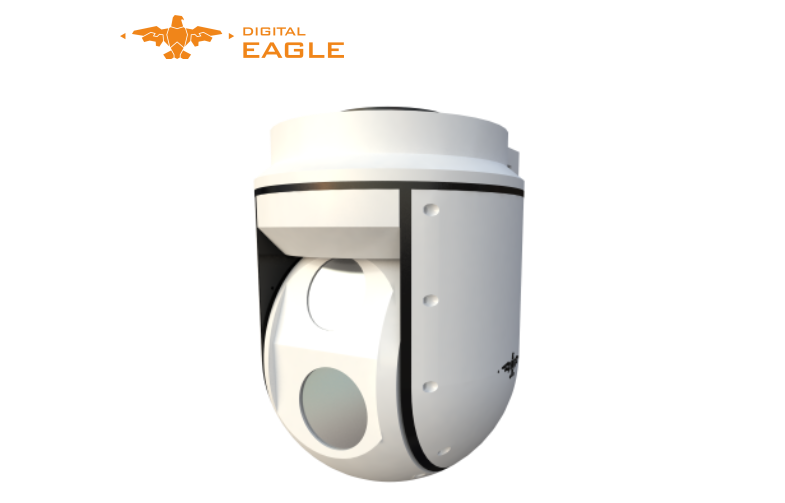

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera

Digital Eagle cameras are suitable for the environment that requires a higher level surveillance protection, with water-proof dust-proof and salt fog-proof features. The cameras are integrated with high-definition visible light, infrared thermal imaging and auto tracking finder modules. The cameras can achieve day and night vision surveillance, temperature measurement, target tracking and other additional features, greatly facilitating the system used in various industries.

Digital Eagle cameras can be mounted on multi-rotor drones, fixed wing drones, VTOL drone, helicopter, aircraft and other types of flying vehicles.

ABS

113mm*123mm*155mm

50% T/T in advance, 50% T/T before loading

2 weeks

Aviation aluminum box

White/Black/Yellow

1 unit

Wuxi, China

YPO-08 EO/IR Dual Lights Camera

استفسار

أكتب مراجعة

Digital Eagle

YPO-08 Two Axis EO/IR Camera

EO/IR Infrared Thermal Imaging Camera For UAV /Drone

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 2

Two-Axis zoom infrared thermal imaging camera for Drone UAV

TIE Digital Image Detail Enhancement Technique with Edge Sharpening

Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）

Technical Data Sheet

Visible light parameter

Optical zoom factor	10x zoom	Video format	1080p
Pixels	2 million pixels	Lens focal length	F=4.9mm(wide-angle)to 49mm(remote)
Temperature range	-20 degree ~ 60 degree	Power consumption	2.9 W (zoom work/no focus ) 3.7 W (zoom and focus both work)

Physical electrical performance parameter

Stability system	Directional pitch two axis structure	Various rotation angles	Pitch +30°~-90, Yaw 360°
Stable accuracy	Better than 0.1 degree	Power supply	12v DC input, total power consumption is less than 15w
Speed range	The maximum rotational angular speed is 30 degree /s, the	Diameter	мм113
Minimum steady angular velocity is less than 1 degree/s		Stability system	Two axis structure
Жин		Хэмжээ	113mm123mm155mm

Thermal imaging parameter

Pixels	640*480	Wavelength range	8~14μm
Power consumption	2.5W	NETD	≤50mk@25℃
Image noise reduction	Digital filtering	Frame rate	50hz
Video output	HDMI	Mage enhancement	TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Ашиглалтын температур	-20℃~+60℃	Humidity	≤95%( Non-condensing)
Electronic zoom	2x 4x 8 /16x Electronic zoom	Field of view angle	19.5*14.7

Laser Rrange Finder Parameter

Range	5-3000m	Beam Divergence	3mrad
Resolution	м0.5	Frame rate	50hz
Beam	905nm pulse laser	Video output	HDMI

Wide Applications

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 3

Daytime image with 10x optical zoom

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 4

One key switch to thermal lens

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 5

Thermal image for night vision,picture in picture

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 6

Target tracking for security monitor

Products Features

Digital Eagle YPO-08 EO/IR Dual Lights Gimbal Camera 7

YPO-08 Drone Accessories HD EO/IR 2 Axis Drone Camera

Both daytime and night imaging

Point zoom tracking

Real time video transmission to command center

Mounted on multi-rotor drones/fixed-wing drone

FAQ

Which certificate do you have for your equipment?
We have ISO9001, ISO14001, CE certificate
What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device
If OEM is acceptable?
Тиймээ. We can do OEM.
What is your term of payment?
50% T/T in advance, 50% T/T before delivery
What's your advantage compared with other suppliers?
Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage
How do you provide training service?
All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
