This model is operated by RC within the natural visual range, which is suitable for flight training and model aircraft competitions.
UAV flight training and testing is the final part of flight technique training. Only in a real environment can one truly master and become proficient in flight techniques.
This drone, suitable for the training with visual range, allows pilots to attain skills to operate the remote control, programming and debugging, and to be able to master the basic operation of the drone's flight attitude, altitude, heading, speed and so on.

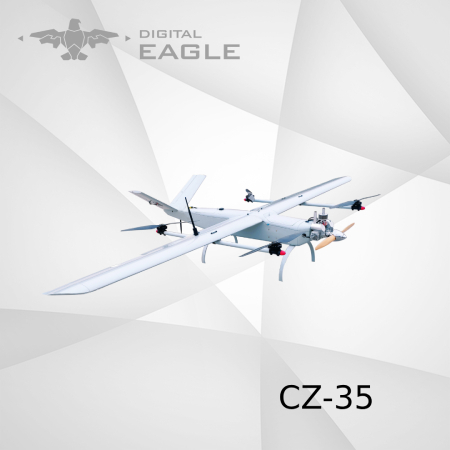

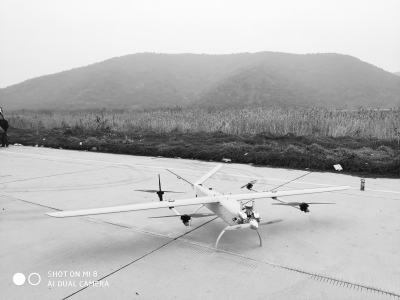

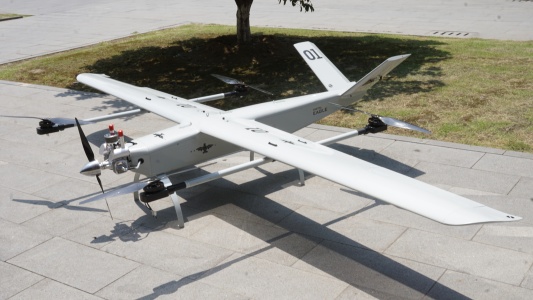

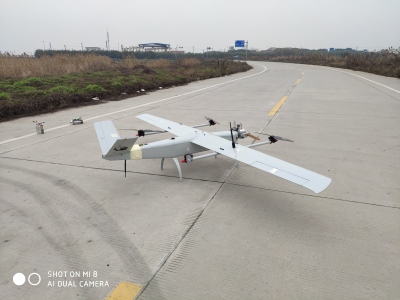

YFT-CZ35RC VTOL Fixed Wing Drone/UAV
Technical Data Sheet
| Max Payload | kg3 | Flight Duration | 50 minutes |
Take-off weight | Depending | Max wind resistance | 8 ~ 13.8m/s |
Take-off and landing | VTOL | Max speed at sea level | 120km/h |
Wingspan | mm3600 | Working altitude | ＜4000m |
Cruise control speed | 70-100km/h | Power System | Hybrid(Battery+ Gasoline) |
Max climb rate | 5m/s |
Support the fixed wing vertical takeoff and landing : greatly reduce dependence on the site, ejection rack, parachute, etc., and the operating site is wide adapted.Dual-redundancy GNSS positioning.
Out of control return, Flight direction Lock, law battery alarm and data recorder.Manual stability, autonomous take-off/landing,flying attitude stability/GPS attitude stability
Built-in black box data recording function, can be recorded about 60 minutes of flight data. Support for connecting external data loggers, Record up to 2000 hours of flight data.
support real-time monitor height and distance,GPS star number, flight status real-time dispay.Real-time display flying height, distance, heading angle.Support the fist view monitoring
Training for Supervisory
UAV flight technology training involves not only basic theoretical learning, simulator training and real-time flight training, but also maintenance and repair of UAVs as well as continuous learning and expansion. Only through continuous learning and training can we master superb flight techniques and at the same time be able to apply UAVs for a variety of tasks.
Training for Surveying and Mapping
Before carrying out real-time aircraft training, it is necessary to understand the flying site, environment and weather and other related conditions, and make pre-flight preparations. During the training, we should pay attention to the safety, comply with the flight regulations, and strictly prohibit dangerous operation by remote control operation within visual range.
Training for Power Line Patrol
Remote control operation: The remote control is an important tool for controlling the UAV's flight direction and attitude, and mastering the operation methods and skills of the remote control can improve flight accuracy and stability.
Mission Payload Delivery
DE UAV has the characteristics of large payload and long endurance. The payload ranges from 1kg to 50kg, which can be customized according to customer needs. Logistics drones are widely used in the logistics field.
