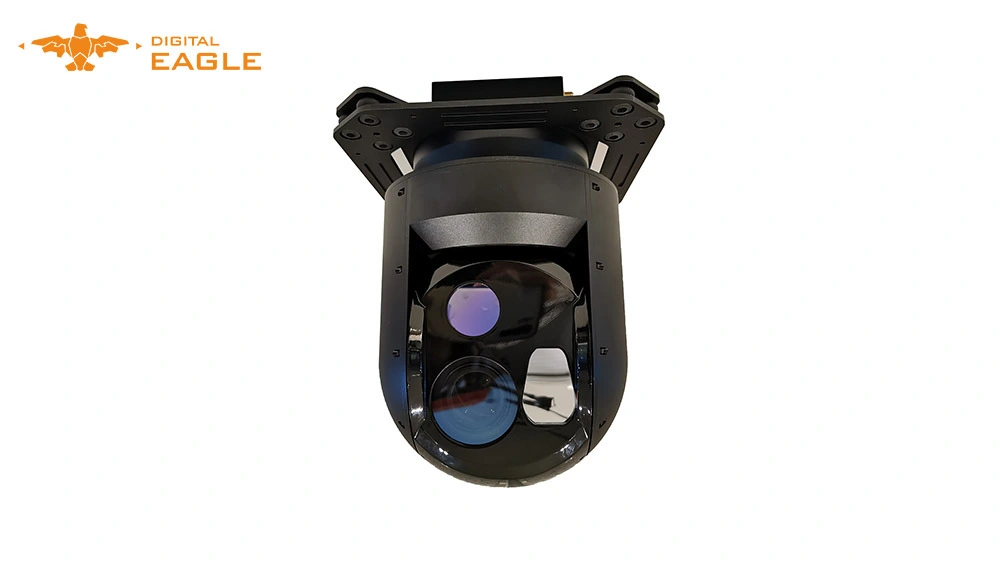

Drone Gimbal Camera with Daylight Thermal Imaging and Laser Range Finder YPO-20
Stability system:Directional pitch two axis structure
Stable accuracy:Better than 0.1 degree
Speed range:The maximum rotational angular speed is 30 degree /s, the
minimum steady angular velocity is less than 1 degree/s
5.0
piace
:
ABS
:
180mm*180*240mm
:
50% T/T in advance, 50% T/T before loading
:
2 weeks
:
Aviation aluminum box
:
Кара
:
1 unit
:
Wuxi, China
:
YPO-25
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Si prega di compilare il modulo sottostante per richiedere un preventivo o per richiedere ulteriori informazioni su di noi. Si prega di essere il più dettagliato possibile nel tuo messaggio, e ti risponderemo il prima possibile con una risposta. Siamo pronti per iniziare a lavorare sul tuo nuovo progetto, contattaci ora per iniziare.
Digital Eagle
YPO-25 Two Axis EO/IR/RF Camera
EO/IR/IRF Infrared Thermal Imaging Camera For UAV /Drone
Three-Axis 360° Stable System 40X Optical Zoom HD Camera
TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）
Technical Data Sheet
1F
Visible light parameter
| Optical zoom factor | 30x zoom | Video format | 1080p |
| Pixels | About 2 million pixels | Lens focal length | F=4.3mm(wide-angle)to 129mm(remote) |
| Temperature range | -20 degree ~ 60 degree | Power consumption | 2.9 W (zoom work/no focus ) 3.7 W (zoom and focus both work) |
2F
Physical electrical performance parameter
Stability system | Directional pitch two axis structure | Various rotation angles | Pitch +30°~-90, Yaw 360° |
Stable accuracy | Better than 0.1 degree | Power supply | 12v DC input, total power consumption is less than 15w |
Speed range | The maximum rotational angular speed is 30 degree /s, the | Diameter | 180mm |
Minimum steady angular velocity is less than 1 degree/s | Stability system | Two axis structure | |
Uzito | <2kilo | Ukubwa | 180mm*180mm*240mm |
3F
Thermal imaging parameter
| Pixels | 2 million | Wavelength range | 8~14μm |
| Power consumption | 2.5W | NETD | ≤50mk@25℃ |
| Image noise reduction | Digital filtering | Frame rate | 50hz |
| Video output | HDMI | Mage enhancement | TIE Digital Image Detail Enhancement Technique with Edge Sharpening |
| Operating temperature | -20℃~+60℃ | Humidity | ≤95%( Non-condensing) |
| Electronic zoom | 2x 4x Electronic zoom | Field of view angle | 19.5*14.7 |
4F
Laser Rrange Finder Parameter
| Range | 5-3000m | Beam Divergence | 3mrad |
| Resolution | 0.5m | Frame rate | 50hz |
| Beam | 905nm pulse laser | Video output | HDMI |
Wide Applications
Daytime image with 30x optical zoom
One key switch to thermal lens
Thermal image for night vision,picture in picture
Target tracking for security monitor
Products Features
bg
YPO-25 Drone Accessories HD EO/IR/RF 3 Axis Drone Camera
Both daytime and night imaging
Point zoom tracking
Real time video transmission to command center
Mounted on multi-rotor drones/fixed-wing drone
FAQ
- Which certificate do you have for your equipment?We have ISO9001, ISO14001, CE certificate
- What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device
- If OEM is acceptable?Ndiyo. We can do OEM.
- What is your term of payment?50% T/T in advance, 50% T/T before delivery
- What's your advantage compared with other suppliers?Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage
- How do you provide training service?All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
