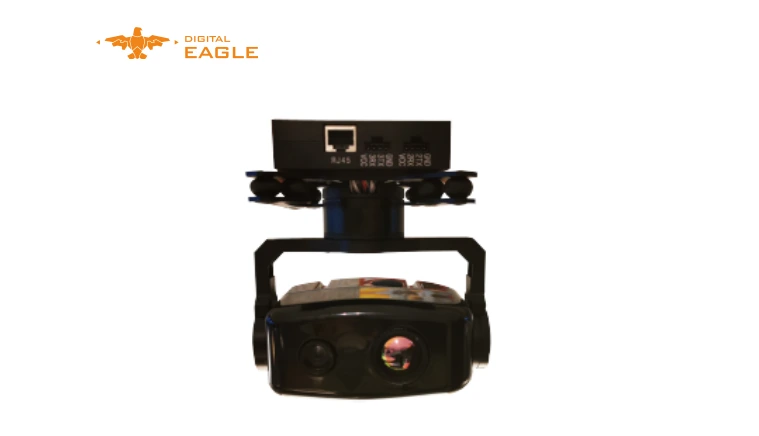

Digital Eagle YT-08 Dual Lights PTZ Camera
Digital Eagle cameras are suitable for the environment that requires a higher level surveillance protection, with water-proof dust-proof and salt fog-proof features. The cameras are integrated with high-definition visible light, infrared thermal imaging, auto tracking finder modules. The cameras can achieve day and night vision surveillance, temperature measurement, target tracking finding and other additional features, greatly facilitating the system used in various industries. Digital Eagle cameras can be mounted on multi rotor drones, fixed wing drones, VTOL drone, helicopter, aircraft and other types of flying vehicles.
5.0
like
Material:
ABS
Wingspan:
113mm*123*155mm
Transaction mode:
50% T/T in advance, 50% T/T before loading
Delivery time:
2 weeks
Packing:
Aviation aluminum box
Color:
Black/White
Minimum order quantity:
1 Unit
Place of Origin:
Wuxi,China
Model:
YT-08 Dual Lights EO/IR Camera
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Digital Eagle
YT-08 Dual Lights EO/IR PTZ Camera
EO/IR Infrared Thermal Imaging Camera For UAV /Drone
Starlight camera 10x optical zoom PTZ camera clearly imaging in low light
TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）
Technical Data Sheet
1F
Visible light parameter
| Optical zoom factor | 10x zoom | Video format | 1080p |
| Pixels | 2 million pixels | Lens focal length | F=4.9mm(wide-angle)to 49mm(remote) |
| Temperature range | -20 degree ~ 60 degree | Power consumption | 2 W (zoom work/no focus ) 3.7 W (zoom and focus both work) |
2F
Physical electrical performance parameter
Stability system | Directional pitch two axis structure | Various rotation angles | Pitch +30°~-90, Yaw 360° |
Stable accuracy | Better than 0.1 degree | Power supply | 12v DC input, total power consumption is less than 15w |
Speed range | The maximum rotational angular speed is 30 degree /s, the | Diameter | 113mm |
Minimum steady angular velocity is less than 1 degree/s | Stability system | Two axis structure | |
Weight | <890G | Size | 113mm*123mm*155mm |
3F
Thermal imaging parameter
| Resolution | 640*480 | Wavelength range | 8~14μm |
| Power consumption | 2.5W | NETD | ≤50mk@25℃ |
| Image noise reduction | Digital filtering | Frame rate | 50Hz |
| Video output | HDMI | Mage enhancement | TIE Digital Image Detail Enhancement Technique with Edge Sharpening |
| Operating temperature | -20℃~+60℃ | Humidity | ≤95%( Non-condensing) |
| Digital zoom | 2x 4x 8x 16x | Field of view angle | 19.5*14.7 |
4F
Laser Rrange Finder Parameter
| Range | 2000m | Beam Divergence | 3mrad |
| Resolution | 0.5m | Frame rate | 50Hz |
| Beam | 905nm pulse laser | Video output | HDMI |
Wide Applications
Daytime image with 30x optical zoom
One key switch to thermal lens
Thermal image for night vision,picture in picture
Target tracking for security monitor
Products Features
bg
FAQ
- Which certificate do you have for your equipment?We have ISO9001, ISO14001, CE certificate
- What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device
- If OEM is acceptable?Yes. We can do OEM.
- What is your term of payment?50% T/T in advance, 50% T/T before delivery
- What's your advantage compared with other suppliers?Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage
- How do you provide training service?All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
