Security Solution Provider for Professional UAV, UAV Payloads, Anti Drone System.
Custom mini ptz camera Fire Fighting Manufacturer | Digital Eagle
It has exceeded the national superior product inspection standards.
At Digital Eagle, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. mini ptz camera We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product mini ptz camera or our company.Digital Eagle has developed many customers which are satisfied with our mini ptz camera with reliable quality assurance.
Digital Eagle

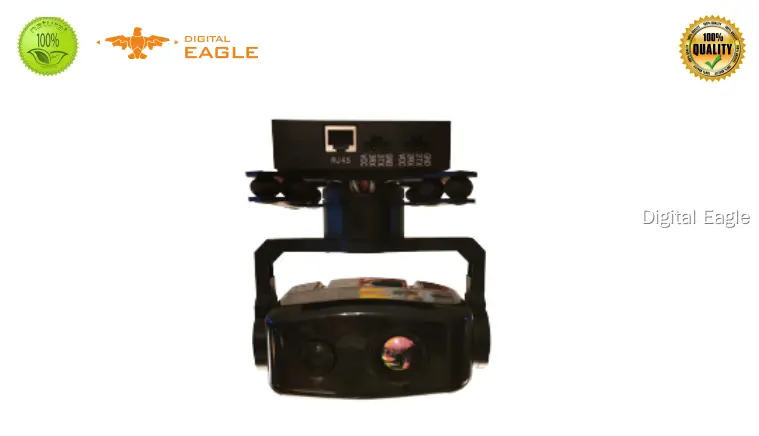

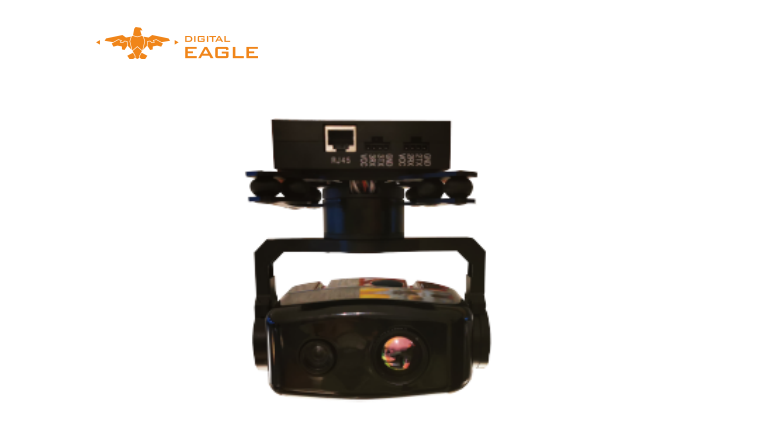

YT-08 Dual Lights EO/IR PTZ Camera
EO/IR Infrared Thermal Imaging Camera For UAV /Drone
Starlight camera 10x optical zoom PTZ camera clearly imaging in low light
TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）
Technical Data Sheet
1F
Visible light parameter
| Optical zoom factor | 10x zoom | Video format | 1080p |
| Pixels | 2 million pixels | Lens focal length | F=4.9mm(wide-angle)to 49mm(remote) |
| Temperature range | -20 degree ~ 60 degree | Power consumption | 2 W (zoom work/no focus ) 3.7 W (zoom and focus both work) |
2F
Physical electrical performance parameter
Stability system | Directional pitch two axis structure | Various rotation angles | Pitch +30°~-90, Yaw 360° |
Stable accuracy | Better than 0.1 degree | Power supply | 12v DC input, total power consumption is less than 15w |
Speed range | The maximum rotational angular speed is 30 degree /s, the | Diameter | 113mm |
Minimum steady angular velocity is less than 1 degree/s | Stability system | Two axis structure | |
Weight | <890G | Size | 113mm*123mm*155mm |
3F
Thermal imaging parameter
| Resolution | 640*480 | Wavelength range | 8~14μm |
| Power consumption | 2.5W | NETD | ≤50mk@25℃ |
| Image noise reduction | Digital filtering | Frame rate | 50Hz |
| Video output | HDMI | Mage enhancement | TIE Digital Image Detail Enhancement Technique with Edge Sharpening |
| Operating temperature | -20℃~+60℃ | Humidity | ≤95%( Non-condensing) |
| Digital zoom | 2x 4x 8x 16x | Field of view angle | 19.5*14.7 |
4F
Laser Rrange Finder Parameter
| Range | 2000m | Beam Divergence | 3mrad |
| Resolution | 0.5m | Frame rate | 50Hz |
| Beam | 905nm pulse laser | Video output | HDMI |
Wide Applications
Daytime image with 30x optical zoom
One key switch to thermal lens
Thermal image for night vision,picture in picture
Target tracking for security monitor
Products Features
bg
FAQ
- Which certificate do you have for your equipment?We have ISO9001, ISO14001, CE certificate
- What can I buy from you?
Agriculture Drone, Multi-rotor Drone, Fixed Wing Drone, Drone Camera, Anti Drone Device
- If OEM is acceptable?Yes. We can do OEM.
- What is your term of payment?50% T/T in advance, 50% T/T before delivery
- What's your advantage compared with other suppliers?Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage
- How do you provide training service?All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
